Aggregating data#

Data aggregation refers to a process where we combine data into groups. When doing spatial data aggregation, we merge the geometries together into coarser units (based on some attribute), and can also calculate summary statistics for these combined geometries from the original, more detailed values. For example, suppose that we are interested in studying continents, but we only have country-level data like the country dataset. If we aggregate the data by continent, we would convert the country-level data into a continent-level dataset.

In this tutorial, we will aggregate our travel time data by car travel times (column car_r_t), i.e. the grid cells that have the same travel time to Railway Station will be merged together.

Let’s start with loading intersection.gpkg, the output file of the previous section:

import pathlib
NOTEBOOK_PATH = pathlib.Path().resolve()
DATA_DIRECTORY = NOTEBOOK_PATH / "data"
import geopandas
intersection = geopandas.read_file(DATA_DIRECTORY / "intersection.gpkg")

For doing the aggregation we will use a method called dissolve() that takes as input the column that will be used for conducting the aggregation:

# Conduct the aggregation
dissolved = intersection.dissolve(by="car_r_t")

# What did we get
dissolved.head()
geometry car_m_d car_m_t car_r_d from_id pt_m_d pt_m_t pt_m_tt pt_r_d pt_r_t pt_r_tt to_id walk_d walk_t GML_ID NAMEFIN NAMESWE NATCODE
car_r_t
-1 MULTIPOLYGON (((384750.000 6670000.000, 384500... -1 -1 -1 5913094 -1 -1 -1 -1 -1 -1 -1 -1 -1 27517366 Helsinki Helsingfors 091
0 POLYGON ((385750.000 6672000.000, 385750.000 6... 0 0 0 5975375 0 0 0 0 0 0 5975375 0 0 27517366 Helsinki Helsingfors 091
7 POLYGON ((386250.000 6671750.000, 386000.000 6... 1051 7 1051 5973739 617 5 6 617 5 6 5975375 448 6 27517366 Helsinki Helsingfors 091
8 MULTIPOLYGON (((386000.000 6671500.000, 385750... 1286 8 1286 5973736 706 10 10 706 10 10 5975375 706 10 27517366 Helsinki Helsingfors 091
9 MULTIPOLYGON (((385000.000 6671250.000, 385000... 1871 9 1871 5970457 1384 11 13 1394 11 12 5975375 1249 18 27517366 Helsinki Helsingfors 091

Let’s compare the number of cells in the layers before and after the aggregation:

print(f"Rows in original intersection GeoDataFrame: {len(intersection)}")
print(f"Rows in dissolved layer: {len(dissolved)}")
Rows in original intersection GeoDataFrame: 3826
Rows in dissolved layer: 51

Indeed the number of rows in our data has decreased and the Polygons were merged together.

What actually happened here? Let’s take a closer look.

Let’s see what columns we have now in our GeoDataFrame:

dissolved.columns
Index(['geometry', 'car_m_d', 'car_m_t', 'car_r_d', 'from_id', 'pt_m_d',
       'pt_m_t', 'pt_m_tt', 'pt_r_d', 'pt_r_t', 'pt_r_tt', 'to_id', 'walk_d',
       'walk_t', 'GML_ID', 'NAMEFIN', 'NAMESWE', 'NATCODE'],
      dtype='object')

As we can see, the column that we used for conducting the aggregation (car_r_t) can not be found from the columns list anymore. What happened to it?

Let’s take a look at the indices of our GeoDataFrame:

dissolved.index
Int64Index([-1,  0,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21,
            22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38,
            39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54,
            56],
           dtype='int64', name='car_r_t')

Aha! Well now we understand where our column went. It is now used as index in our dissolved GeoDataFrame.

Now, we can for example select only such geometries from the layer that are for example exactly 15 minutes away from the Helsinki Railway Station:

# Select only geometries that are within 15 minutes away
dissolved.loc[15]
/home/docs/checkouts/readthedocs.org/user_builds/autogis-site/envs/2023/lib/python3.10/site-packages/pandas/core/dtypes/inference.py:387: ShapelyDeprecationWarning: Iteration over multi-part geometries is deprecated and will be removed in Shapely 2.0. Use the `geoms` property to access the constituent parts of a multi-part geometry.
  iter(obj)  # Can iterate over it.
/home/docs/checkouts/readthedocs.org/user_builds/autogis-site/envs/2023/lib/python3.10/site-packages/pandas/core/dtypes/inference.py:388: ShapelyDeprecationWarning: __len__ for multi-part geometries is deprecated and will be removed in Shapely 2.0. Check the length of the `geoms` property instead to get the  number of parts of a multi-part geometry.
  len(obj)  # Has a length associated with it.
/home/docs/checkouts/readthedocs.org/user_builds/autogis-site/envs/2023/lib/python3.10/site-packages/pandas/io/formats/printing.py:117: ShapelyDeprecationWarning: Iteration over multi-part geometries is deprecated and will be removed in Shapely 2.0. Use the `geoms` property to access the constituent parts of a multi-part geometry.
  s = iter(seq)
/home/docs/checkouts/readthedocs.org/user_builds/autogis-site/envs/2023/lib/python3.10/site-packages/pandas/io/formats/printing.py:121: ShapelyDeprecationWarning: __len__ for multi-part geometries is deprecated and will be removed in Shapely 2.0. Check the length of the `geoms` property instead to get the  number of parts of a multi-part geometry.
  for i in range(min(nitems, len(seq)))
/home/docs/checkouts/readthedocs.org/user_builds/autogis-site/envs/2023/lib/python3.10/site-packages/pandas/io/formats/printing.py:125: ShapelyDeprecationWarning: __len__ for multi-part geometries is deprecated and will be removed in Shapely 2.0. Check the length of the `geoms` property instead to get the  number of parts of a multi-part geometry.
  if nitems < len(seq):
geometry    (POLYGON ((384000.00013620744 6670750.00004266...
car_m_d                                                  7458
car_m_t                                                    13
car_r_d                                                  7458
from_id                                               5934913
pt_m_d                                                   6858
pt_m_t                                                     26
pt_m_tt                                                    30
pt_r_d                                                   6858
pt_r_t                                                     27
pt_r_tt                                                    32
to_id                                                 5975375
walk_d                                                   6757
walk_t                                                     97
GML_ID                                               27517366
NAMEFIN                                              Helsinki
NAMESWE                                           Helsingfors
NATCODE                                                   091
Name: 15, dtype: object
# See the data type
type(dissolved.loc[15])
pandas.core.series.Series

As we can see, as a result, we have now a Pandas Series object containing basically one row from our original aggregated GeoDataFrame.

Let’s also visualize those 15 minute grid cells.

First, we need to convert the selected row back to a GeoDataFrame:

# Create a GeoDataFrame
selection = geopandas.GeoDataFrame([dissolved.loc[15]], crs=dissolved.crs)

Plot the selection on top of the entire grid:

# Plot all the grid cells, and the grid cells that are 15 minutes
# away from the Railway Station
ax = dissolved.plot(facecolor="gray")
selection.plot(ax=ax, facecolor="red")
<AxesSubplot: >
../../_images/376cf2d87491307335df23450e05b1ac61efe6ddd89fe9aa4baf115025829373.png

Another way to visualize the travel times in the entire GeoDataFrame is to plot using one specific column. In order to use our car_r_t column, which is now the index of the GeoDataFrame, we need to reset the index:

dissolved = dissolved.reset_index()
dissolved.head()
car_r_t geometry car_m_d car_m_t car_r_d from_id pt_m_d pt_m_t pt_m_tt pt_r_d pt_r_t pt_r_tt to_id walk_d walk_t GML_ID NAMEFIN NAMESWE NATCODE
0 -1 MULTIPOLYGON (((384750.000 6670000.000, 384500... -1 -1 -1 5913094 -1 -1 -1 -1 -1 -1 -1 -1 -1 27517366 Helsinki Helsingfors 091
1 0 POLYGON ((385750.000 6672000.000, 385750.000 6... 0 0 0 5975375 0 0 0 0 0 0 5975375 0 0 27517366 Helsinki Helsingfors 091
2 7 POLYGON ((386250.000 6671750.000, 386000.000 6... 1051 7 1051 5973739 617 5 6 617 5 6 5975375 448 6 27517366 Helsinki Helsingfors 091
3 8 MULTIPOLYGON (((386000.000 6671500.000, 385750... 1286 8 1286 5973736 706 10 10 706 10 10 5975375 706 10 27517366 Helsinki Helsingfors 091
4 9 MULTIPOLYGON (((385000.000 6671250.000, 385000... 1871 9 1871 5970457 1384 11 13 1394 11 12 5975375 1249 18 27517366 Helsinki Helsingfors 091

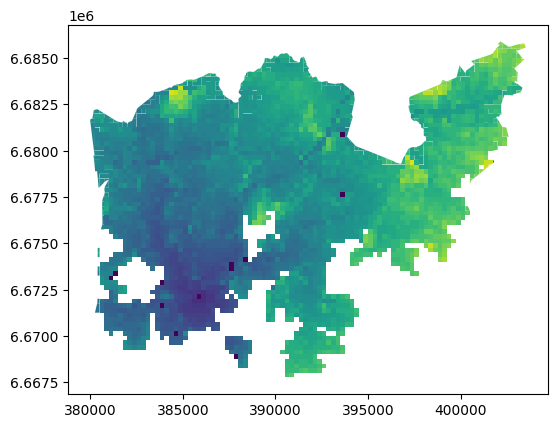

As we can see, we now have our car_r_t as a column again, and can then plot the GeoDataFrame passing this column using the column parameter:

dissolved.plot(column="car_r_t")
<AxesSubplot: >
../../_images/914229ae6e64f02bb9ee86884e5a6fa0ada905005339cf973cf42f4c2bb7f980.png
